Self Service Kiosk Konya 23.8

Screen Size (inch)

Konya Self Order Kiosk is a modern self-service solution designed to accelerate ordering processes and improve operational efficiency. With its powerful hardware and integrated system, it delivers a fast, reliable and seamless user experience

Key Features
24/7 Industrial Grade Displays
24/7 Industrial Grade Displays
Sleek Design
Sleek Design
Manufactured in Türkiye
Manufactured in Türkiye
Customizable
Customizable
Available in Android Version
Available in Android Version
General Overview
Order and Pay at a Single Point

The Konya Model enables customers to complete both ordering and payment on a single device. Its compact countertop design saves space while ensuring fast and seamless flow even during peak hours.

✔ Order and payment in one device
✔ Space-saving compact design
✔ Stable performance for high-traffic environments

Order and Pay at a Single Point
Compact Design, Maximum Efficiency

The Konya Model is a countertop alternative to traditional floor-standing kiosks. It takes up less space while delivering full functionality.

✔ Maximum efficiency in limited spaces
✔ Easy countertop placement
✔ Scalable for multi-location use

Compact Design, Maximum Efficiency
Built for High-Traffic Environments

Designed to operate efficiently even with multiple units side by side. Ideal for fast food chains and businesses with heavy customer flow.

✔ Optimized for high customer volume
✔ Continuous all-day operation
✔ Perfect for chain stores and QSR

Built for High-Traffic Environments
Integrated Payment and Modular Structure

The built-in payment area allows easy card and contactless transactions. Its modular design adapts to different business needs.

✔ Integrated POS and payment system
✔ Contactless and card payment support
✔ Compatible with receipt and add-on modules

Integrated Payment and Modular Structure
Technical Specifications

Panel Size
23.8"
Resolution
1080 x 1920
Brightness (Typ.)
550 cd/m²
Contrast
1000:1 (Typ.) (TM)
Viewing Angle (H x V)
178° x 178°
Response Angle (G-to-G)
14 ms (G to G)
Active Display Area (mm)
527.04 (H) x 296.46 (V)

Touch Technology
Projected Capacitive
Touch Points
10 points Multi-touch
Glass Hardness
6H (min.)

CPU
Quad Core
RAM
4GB
HDD
32GB
OS
Android OS
I/O
HDMI, USB, ETHERNET, WiFi

Power Requirement
AC 100 - 240 V~ (+/- 10 %) 50/60 Hz
Power Consumption (Avg.)
35W
Standby Mode
<0,5W

Operation Life
7/24 - 50.000 hours
Working Conditions
Operation Temp. : 0~ 50 °C Storage Temp. : - 20~60 °C
Humidity
10 ~ 80%

Unit Size(mm) (h x w x d)
835 x 295 x 280
Unit Package Size (mm)
950 x 450 x 450
Product Weight(kg)
24
Package Weight(kg)
25
Stand Size (mm)
855 x 395 x 380
Stand Package Size(mm)
1000 x 550 x 550
Stand Weight(kg)
18

Audio (Optional)
8Ω, 5W x 2
Thermal Printer
80mm

OPTIONAL
Floor Stand & Logo & Brand Color Customization

OTHER (Included in Package)
Easy Installation Guide, Warranty Document, Power Cable

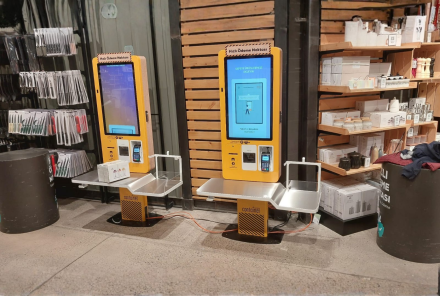

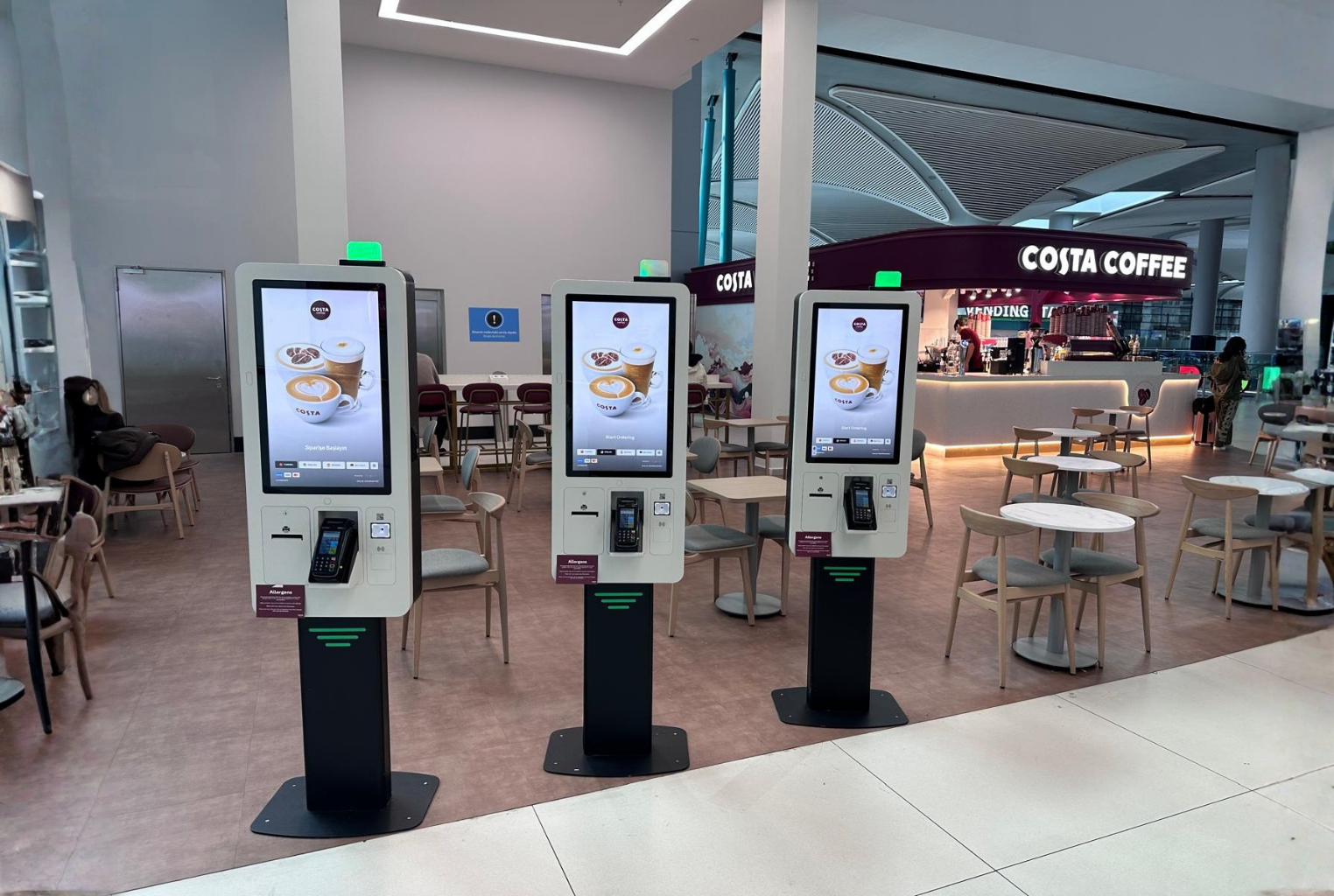

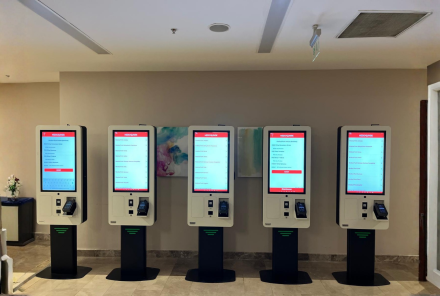

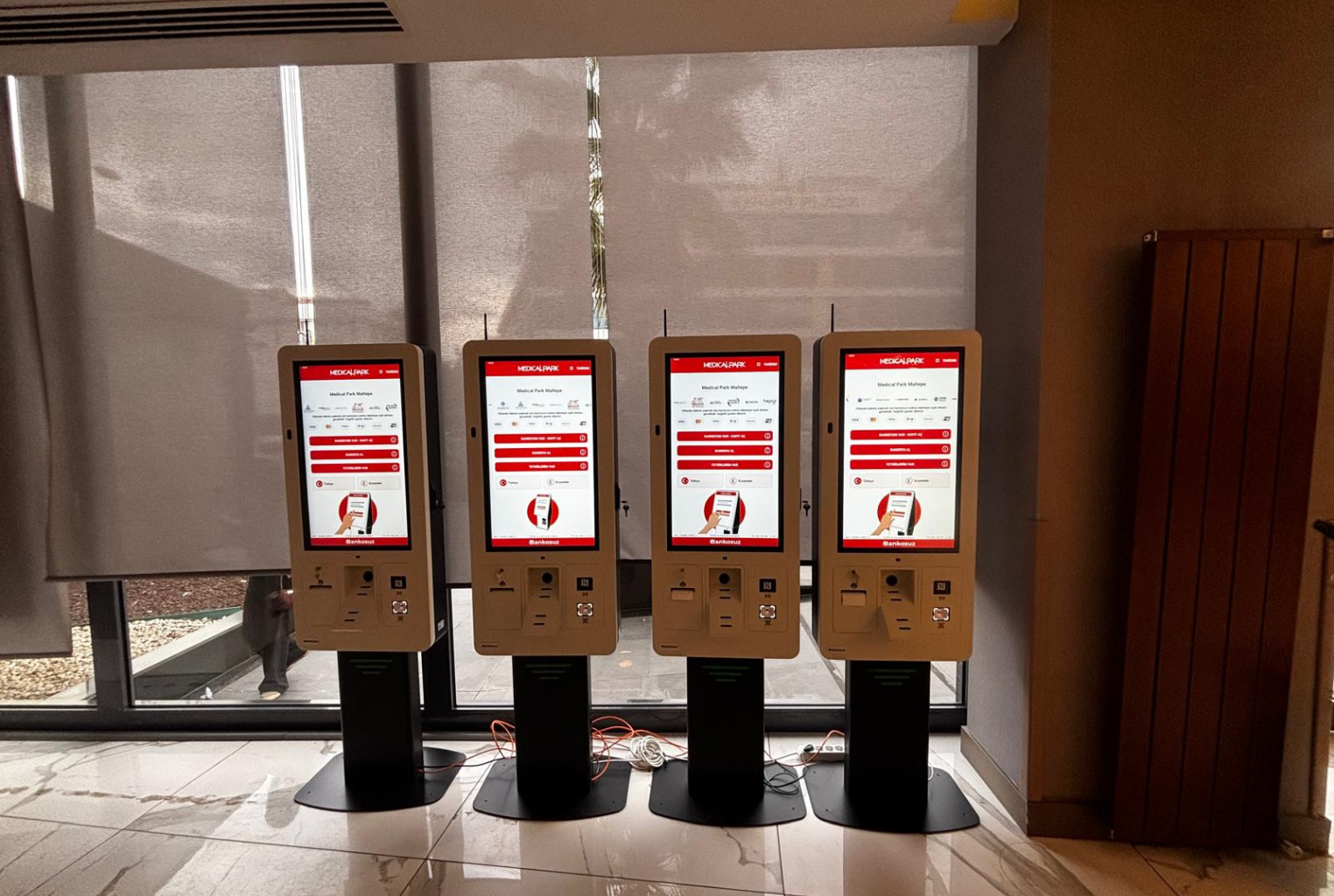

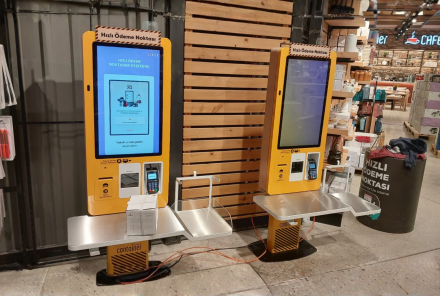

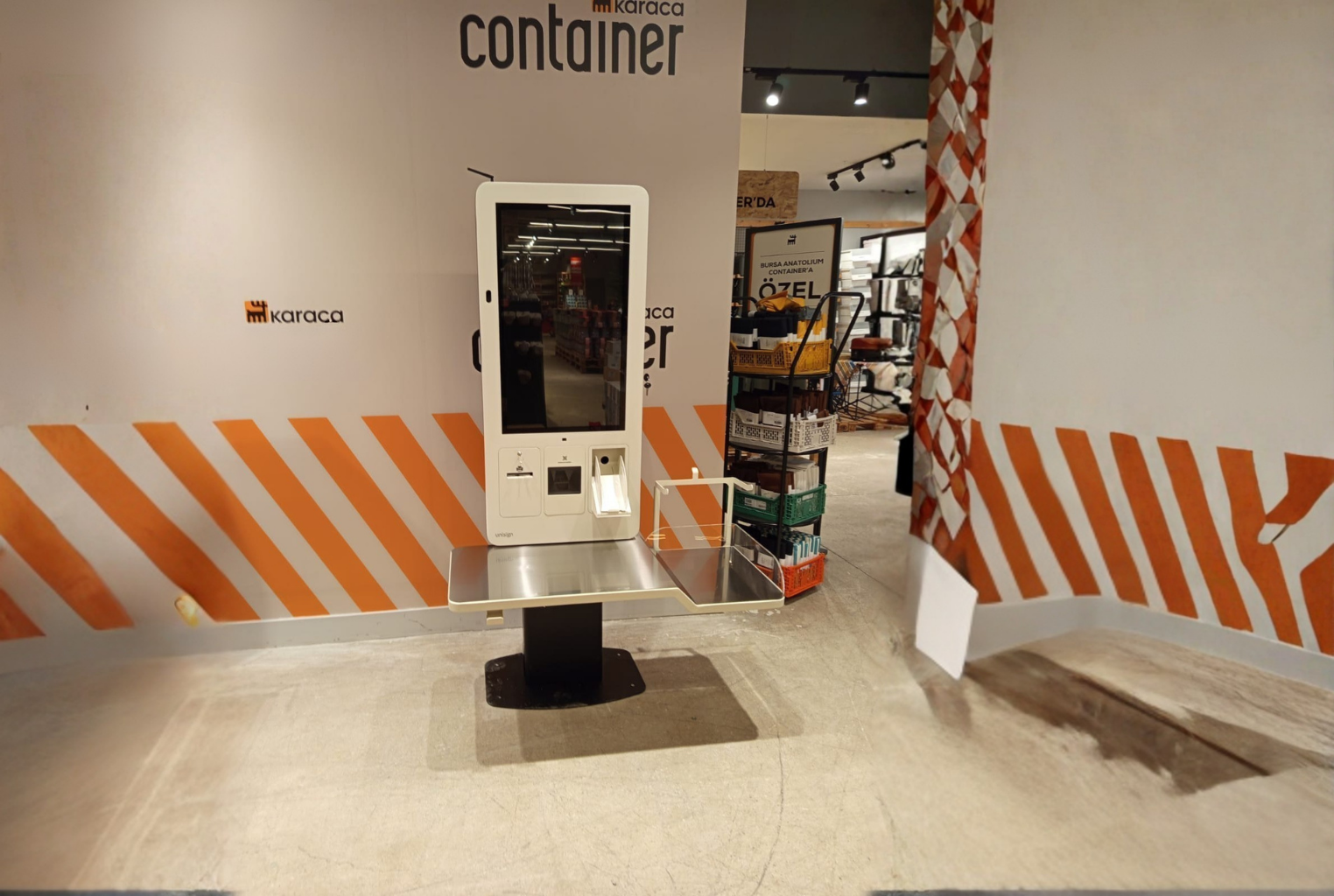

Application Images
