Self Order Kiosk Rize 23.8

KSMA238HA
Screen Size (inch)

Unisign Rize Self Service Kiosk is a compact and powerful solution that brings ordering and payment processes together in a single device. With its modern design and integrated hardware, it provides a fast, organized and uninterrupted service infrastructure for businesses.

Key Features
24/7 Industrial Grade Displays
24/7 Industrial Grade Displays

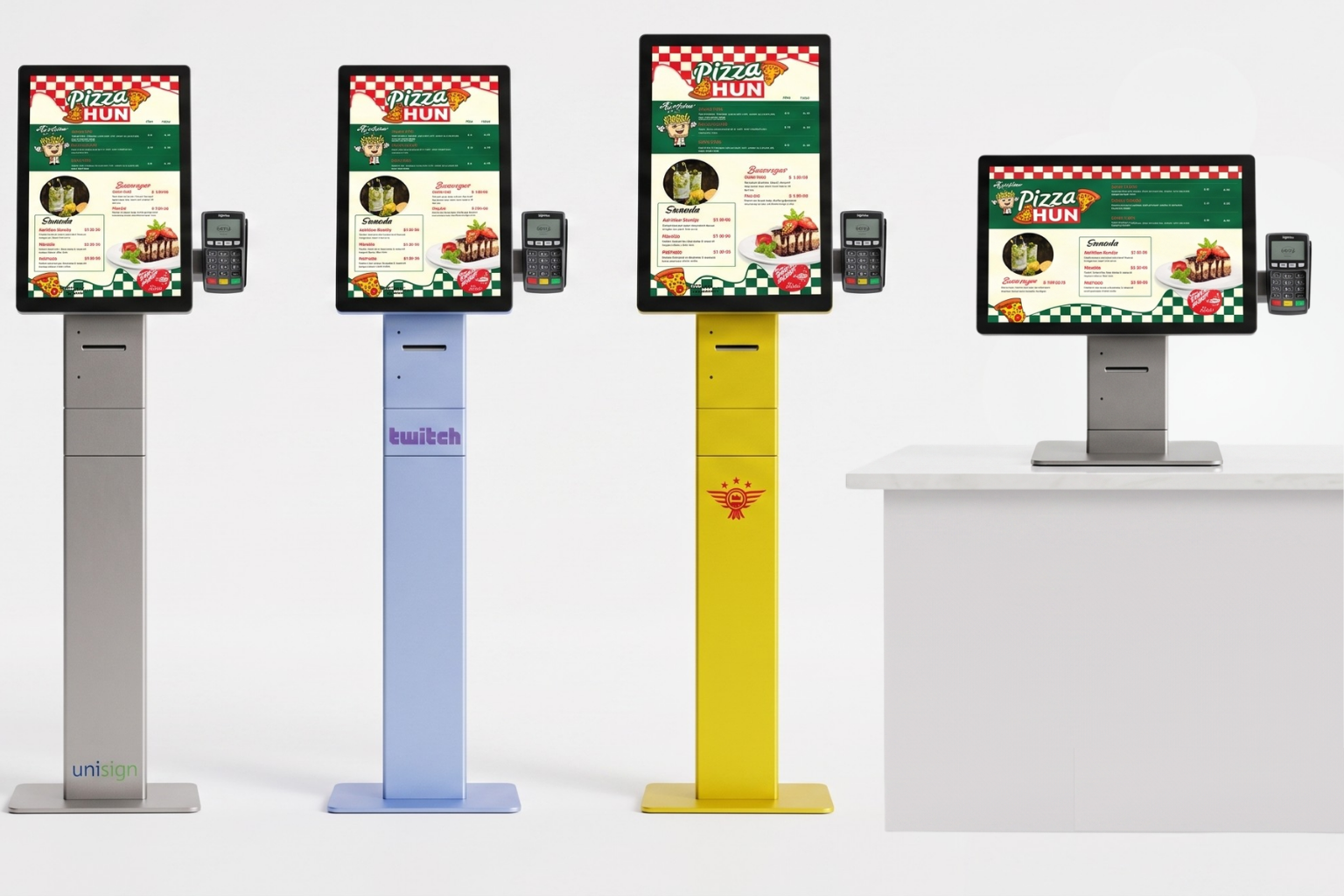

Sleek Design
Sleek Design
Manufactured in Türkiye
Manufactured in Türkiye
Customizable
Customizable
Available in Android Version
Available in Android Version
General Overview
Technical Specifications

Panel Size
23.8"
Resolution
1080 x 1920
Brightness (Typ.)
550 cd/m²
Contrast
1000:1 (Typ.) (TM)
Viewing Angle (H x V)
178° x 178°
Response Angle (G-to-G)
14 ms (G to G)
Active Display Area (mm)
527.04 (H) x 296.46 (V)

Touch Technology
Projected Capacitive
Touch Points
10 points Multi-touch
Glass Hardness
6H (min.)

CPU
Quad Core
RAM
4GB
HDD
32GB
OS
Android OS
I/O
HDMI, USB, ETHERNET, WiFi

Power Requirement
AC 100 - 240 V~ (+/- 10 %) 50/60 Hz
Power Consumption (Avg.)
35W
Standby Mode
<0,5W

Operation Life
7/24 - 50.000 hours
Working Conditions
"Operation Temp. : 0~ 50 °C Storage Temp. : - 20~60 °C"
Humidity
10 ~ 80%

Unit Size(mm) (h x w x d)
740 x 350 x 350
Unit Package Size (mm)
850 x 500 x 500
Product Weight(kg)
16
Package Weight(kg)
21
Stand Size (mm)
765 x 350 x 350
Stand Package Size(mm)
900 x 500 x 500
Stand Weight(kg)
23

Audio (Optional)
8Ω, 5W x 2
Thermal Printer
80mm

OPTIONAL
Floor Stand & Logo & Brand Color Customization

OTHER (Included in Package)
Easy Installation Guide, Warranty Document, Power Cable
