XANA-4216

XANA-4216 Android Media Player
Screen Size (inch)

The Unisign Professional Android Media Players offer a highly scalable, commercial-grade digital signage solution engineered to bring your content to life across any deployment. Divided into Standard and Industrial lines, this comprehensive platform effortlessly spans from cost-effective quad-core entry units to 8K-capable octa-core powerhouses. With a diverse selection of RAM and eMMC storage configurations, you can perfectly tailor the hardware to your project. Whether you need a simple plug-and-play setup for restaurant menus or a high-performance engine for a massive video wall, these compact, mount-ready players easily tuck behind any display to deliver seamless, 24/7 content playback.

Key Features
General Overview
Standard Line Android Media Player Series

Unisign Standard Line Android Media Players are compact and professional media player solutions that can be easily mounted behind digital signage displays. XANA and XANB models deliver reliable 24/7 content playback for restaurant menu boards, in-store advertising screens, corporate information displays and wayfinding screens.

✓ Compact design for easy behind-screen installation
✓ Suitable for digital signage, menu board and advertising display applications
✓ Power button and remote control support
✓ Commercial-grade solution for 24/7 content playback
✓ Ideal for retail, QSR, restaurants, hotels, offices and corporate spaces

Standard Line Android Media Player Series
Flexible Performance Options

The Standard Line series is available with XANA and XANB models to match different project requirements. XANA models provide an efficient and cost-effective solution for 4K digital signage applications, while XANB models offer a powerful platform for premium 8K-supported display projects.

✓ RK3568 quad-core processor structure on XANA models
✓ RK3588 octa-core high-performance structure on XANB models
✓ 2GB, 4GB, 8GB and 16GB RAM options
✓ 16GB, 32GB and 64GB eMMC storage options
✓ The right media player configuration for each project

Flexible Performance Options
4K and 8K Digital Signage Support

Unisign Standard Android Media Players enable smooth, clear and high-resolution content playback. 4K-supported XANA models are ideal for standard advertising and wayfinding displays, while 8K-capable XANB models provide strong performance for video wall and large-scale digital signage projects.

✓ 4K content playback support
✓ 8K video output support on XANB models
✓ High-quality HDMI visual output
✓ Suitable for menu boards, advertising screens and wayfinding displays
✓ Powerful option for video wall and premium digital signage projects

4K and 8K Digital Signage Support

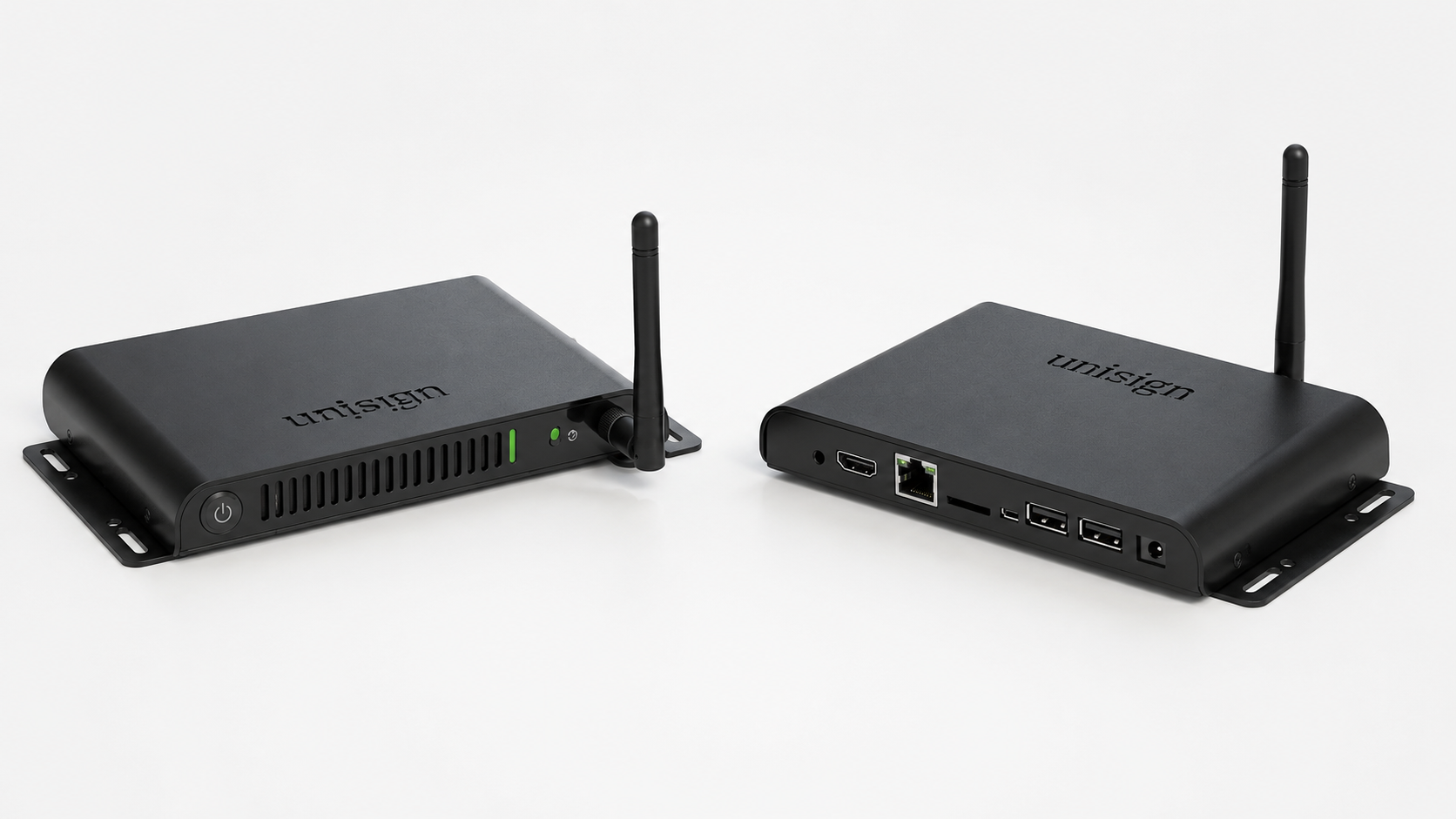

Reliable 24/7 Operation

For digital signage projects, continuous screen operation is essential. Unisign Standard Line Android Media Players offer a reliable solution for 24/7 content playback with a durable commercial-grade structure and automated operation features.

✓ Professional structure suitable for 24/7 operation
✓ Watchdog support for system stability
✓ Timer-based automatic power on/off support
✓ -20°C ~ 70°C operating temperature range
✓ Reliable use in stores, restaurants, shopping malls, hotels and corporate projects

Reliable 24/7 Operation
Remote Content Management

Unisign Standard Android media players simplify content management for single locations and multi-branch networks. With Wi-Fi and Gigabit LAN support, screen content can be updated remotely, schedules can be adjusted and different display scenarios can be created.

✓ Remote content update support
✓ Wi-Fi and Gigabit LAN connectivity
✓ Suitable for horizontal and vertical screen orientation
✓ Split-screen and flexible playback scenarios
✓ Ideal for restaurant menu boards, retail advertising and corporate display networks

Remote Content Management
Technical Specifications

Model No
XANA-4216
Product Name
Android Mini Player (Standard Line)
Product Line
Standard
Reference Board
YF-024E
Processor Platform
RK3568
Form Factor
Mini Player (set-top box)

CPU
Rockchip RK3568
CPU Configuration
Quad-core (4×Cortex-A55)
Max Frequency
Up to 2.0 GHz
GPU
Mali-G52-2EE
NPU (AI)
Up to 1.0 TOPS

RAM
2GB
RAM Type
LPDDR4 / LPDDR4X
Internal Storage (eMMC)
16GB
Storage Expansion
TF / SD card up to 128GB

Operating System
Android 11.0 / 13.0
Play Modes
Loop, timing, insert playback; H/V screen, split, subtitles

Video Decoding
H.265 / H.264 4K@60fps (4K2K)
Video Encoding
H.264 / H.265 1080p@60fps

HDMI Output
Up to 3840×2160 (4K)
HDMI Input

Audio Output
Stereo L/R, 8Ω / 5W
Earphone / Mic
3.5mm earphone + microphone

Ethernet
RJ45, 10/100/1000M adaptive
Wi-Fi
Wi-Fi 5/6 (802.11 b/g/n/ac)
Bluetooth
BT 5.0

USB (external)
1× USB3.0 + 1× USB3.0-OTG
Type-C
Serial Port (RS232)
Internal
Other Serial (TTL/Debug)
Internal
GPIO / Sensor
Internal

Power Button
Yes (On/Off)
Remote Control
Included

Input Voltage
DC 12V
Working Current
250mA typ / 300mA max
Standby Current
10µA typ / 5mA max

Operating Temperature
-20°C ~ 70°C
Operating Humidity
≤ 80% RH
