Android Display

Screen Size (inch)

SSMA320MN 32” Android Display offers a professional screen solution for indoor digital advertising, menu boards, information sharing and wayfinding applications with its Full HD image quality and Android-based structure. Its built-in Android system helps reduce the need for an external media player, while CMS support can be offered as an additional package for centralized content management and remote updates.

Key Features
All-in-One Smart Solution
All-in-One Smart Solution
Easy Remote Management
Easy Remote Management
Designed for 24/7 Commercial Use
Designed for 24/7 Commercial Use
High-Impact Visual Performance
High-Impact Visual Performance
Flexible Installation Options
Flexible Installation Options
General Overview

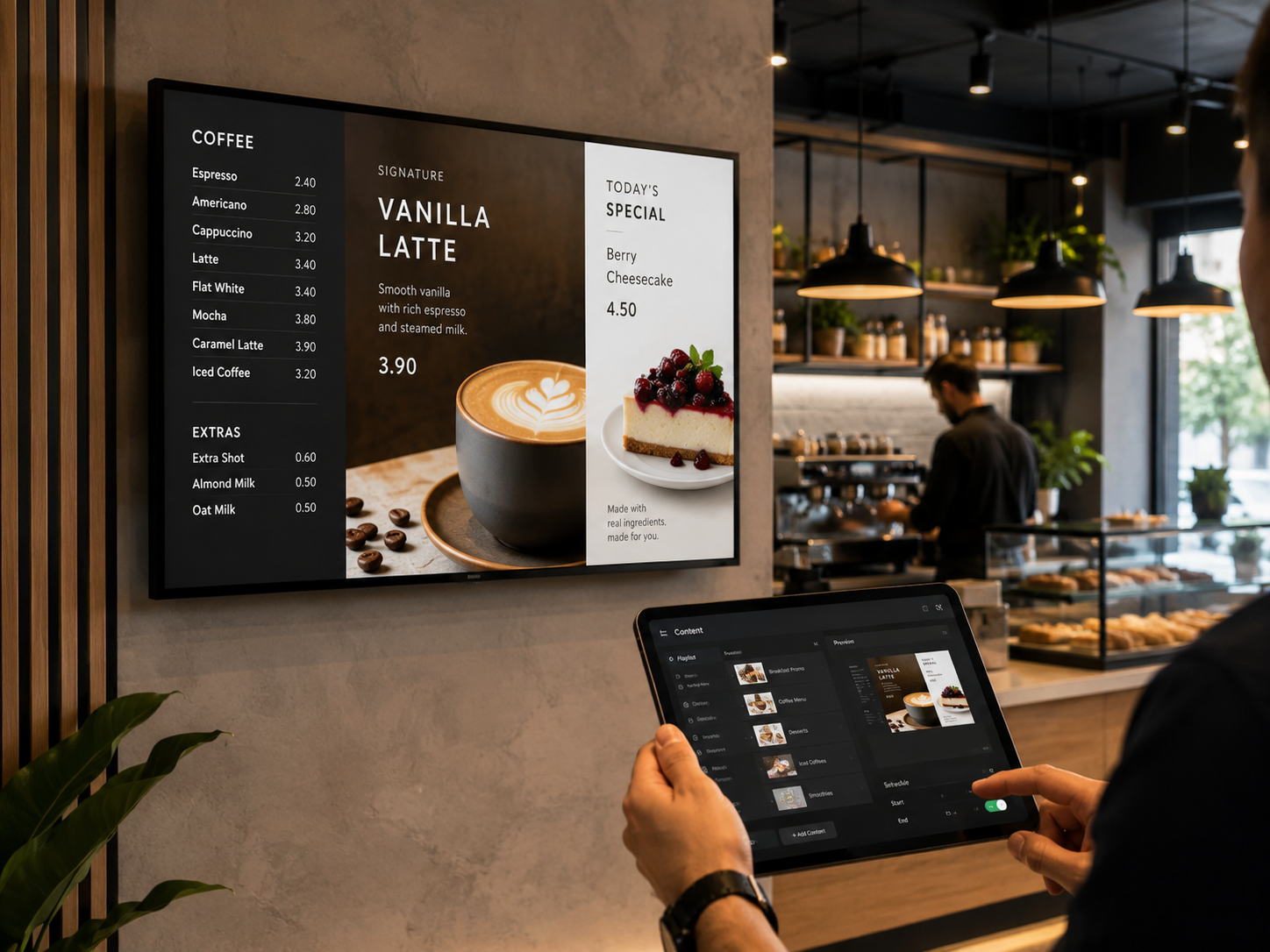

Smart Android Infrastructure

The SSMA320MN features an Android-based system that reduces the need for an external media player and makes digital content playback more practical. It can work with compatible applications, while optional CMS support enables remote content management, scheduling and multi-screen control when required.

Smart Android Infrastructure

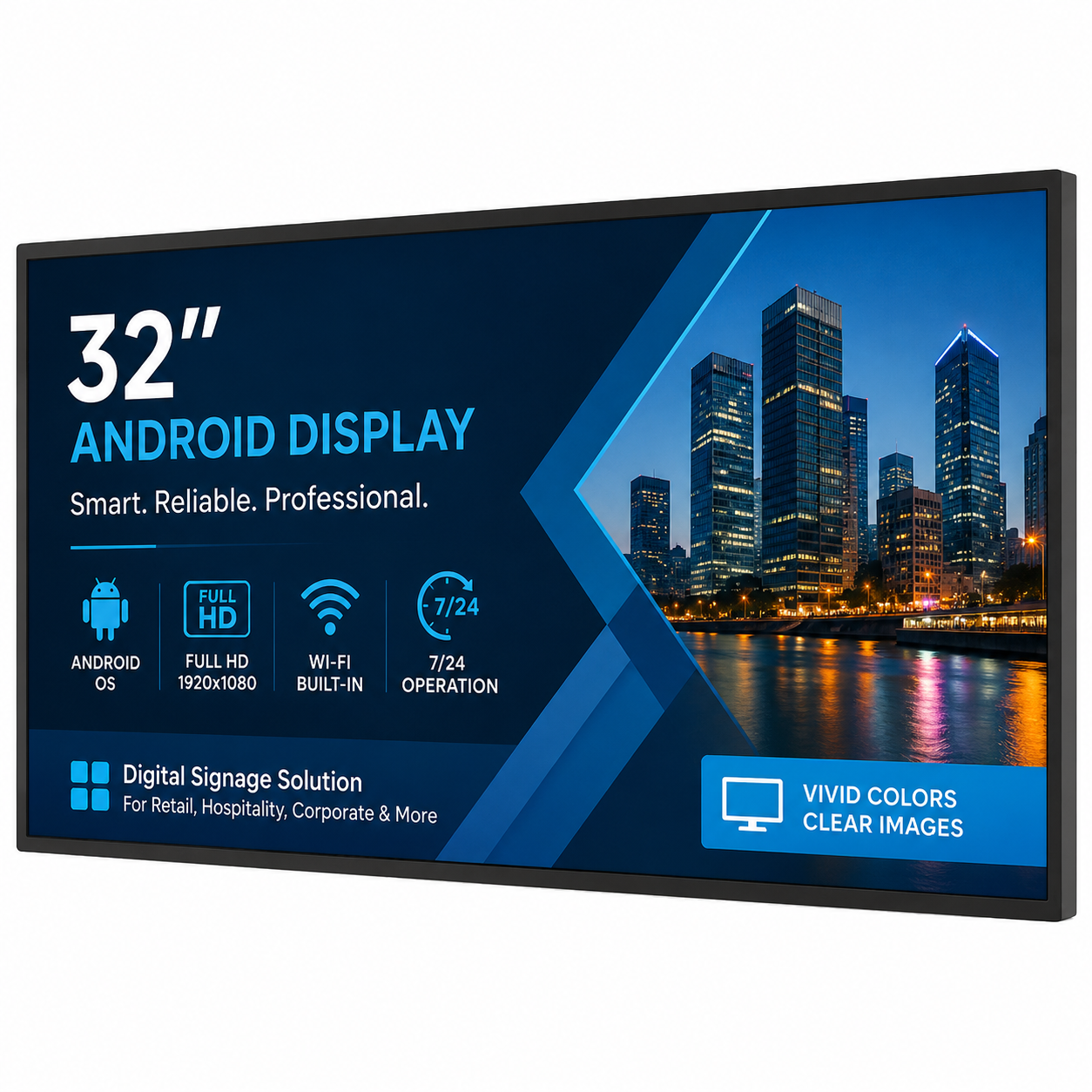

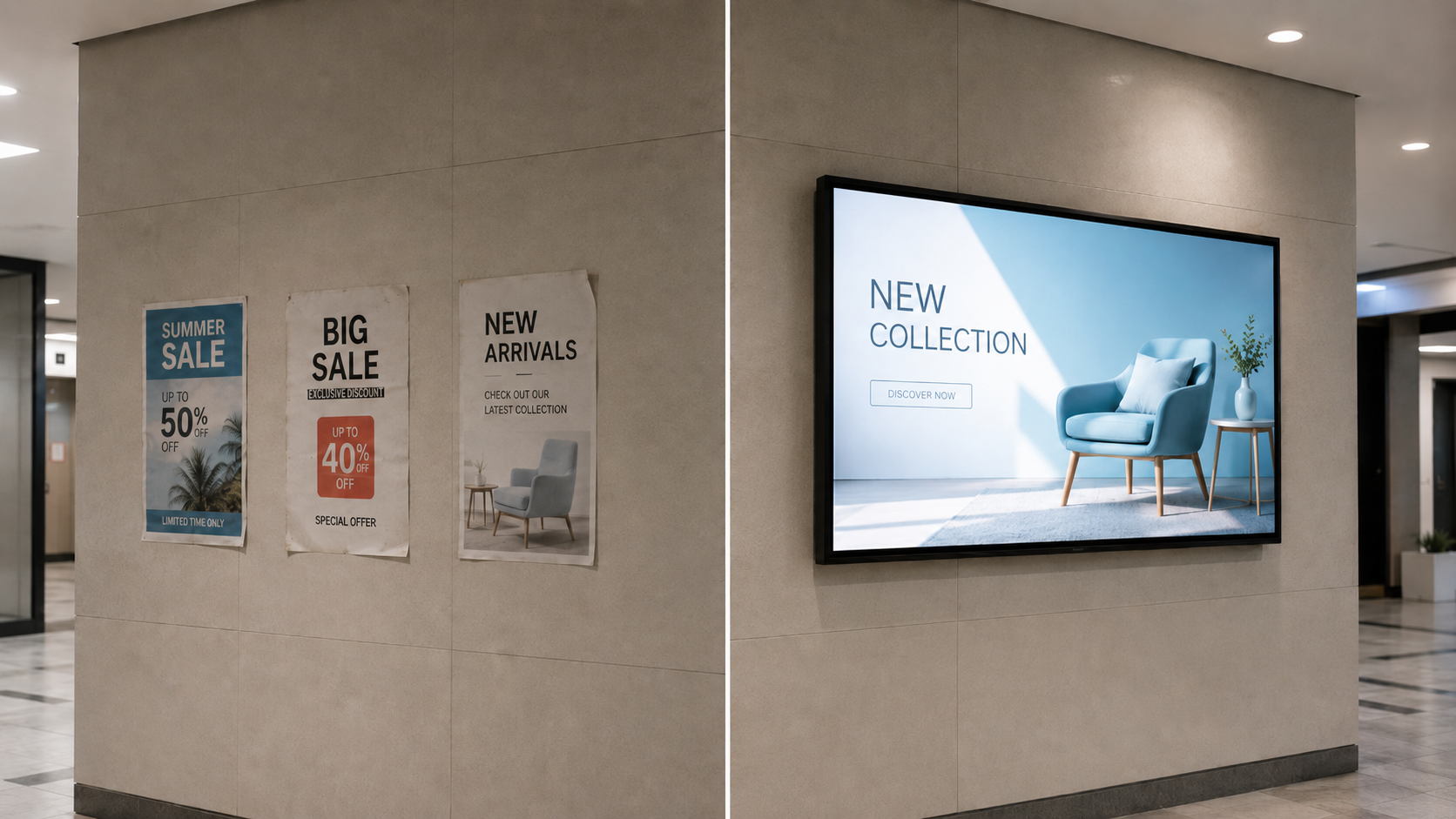

Clear Visuals and 24/7 Operation

With its 32-inch Full HD screen, 1920 × 1080 resolution and 400 cd/m² brightness, it displays indoor advertising, menu, wayfinding and information content clearly. Its commercial-grade structure makes it suitable for 24/7 operation in restaurants, retail stores, hotels and corporate spaces.

Clear Visuals and 24/7 Operation

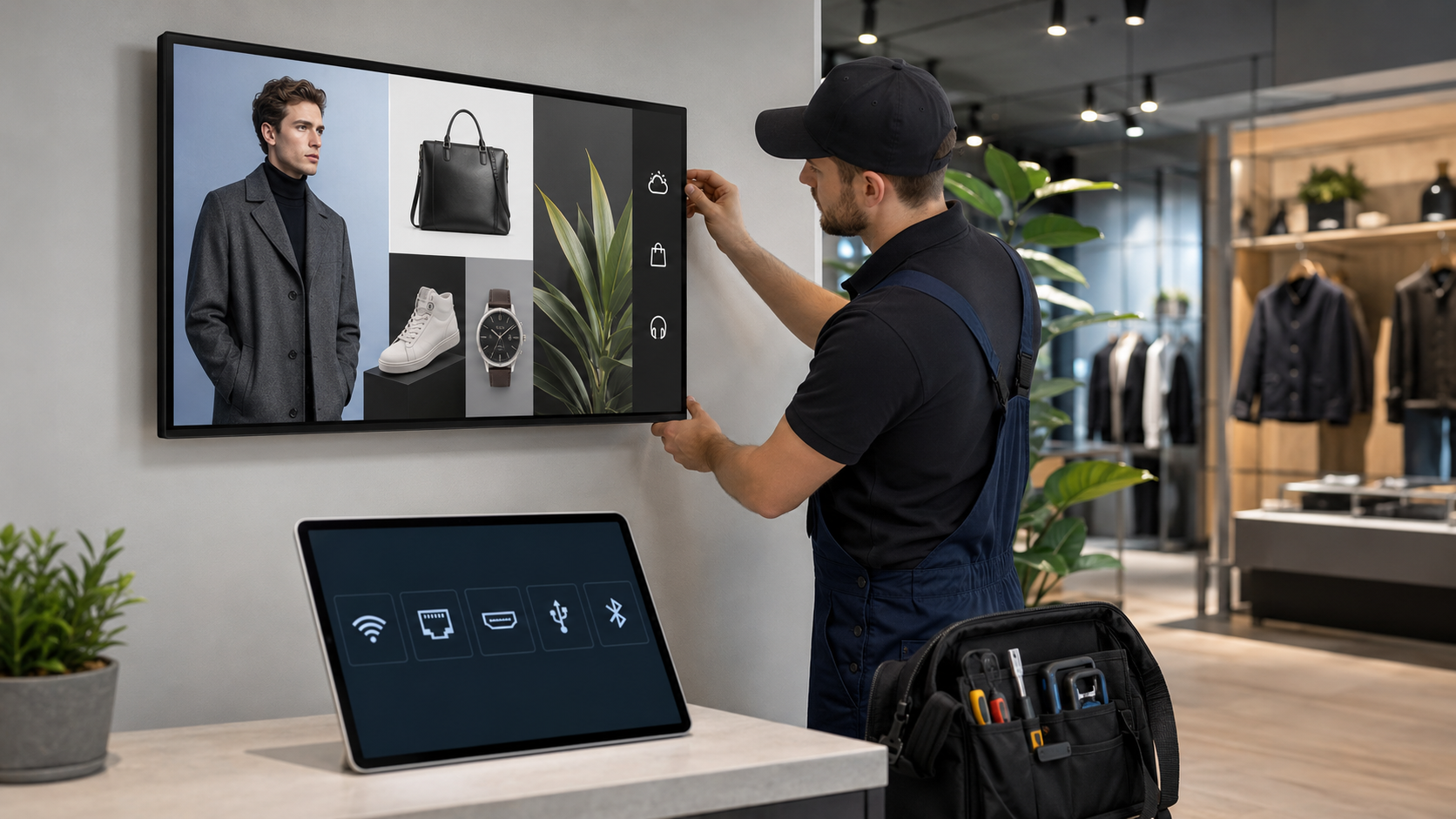

Flexible Connectivity and Easy Installation

With connectivity options such as Wi-Fi, Ethernet, Bluetooth, USB 3.0 and HDMI output, it adapts easily to different usage scenarios. Its slim body and VESA mounting support allow wall installation, custom project integration and flexible use in various digital signage setups.

Flexible Connectivity and Easy Installation
Technical Specifications

Panel Size
32
Resolution
1920x1080
Brightness (cd/m² Typ.)
400 cd/m²
Contrast Ratio
1200:1 (Typ.) (TM)
Viewing Angle (H x V)
89/89/89/89
Response Time (ms)
8 (Typ, G to G)
Active Display Area
698.4(W)×392.85(H) mm

CPU
Rockchip, Quad-core, up to 2.0GHz
RAM
2GB / 4GB (optional)
Internal memory
16GB / 32GB (optional)
Operation system
Android

WiFi
Supported
Ethernet
1 × 10M/100M Adaptive Ethernet
Bluetooth
BT 4.1

Video format
MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 4K
jpeg, bmp etc.
Language
Multi-language
Other
Supports kiosk mode

Card slot
SD card
HDMI
HDMI Out
USB
2*USB 3.0
Earphone
3.5mm earphone + Microphone

Power Requirement
AC 100 - 240 V~ (+/- 10 %) 50/60 Hz
Power Consumption (Avg.)
50W
Standby Mode
<0,5W

Vesa Mount
200 x 100

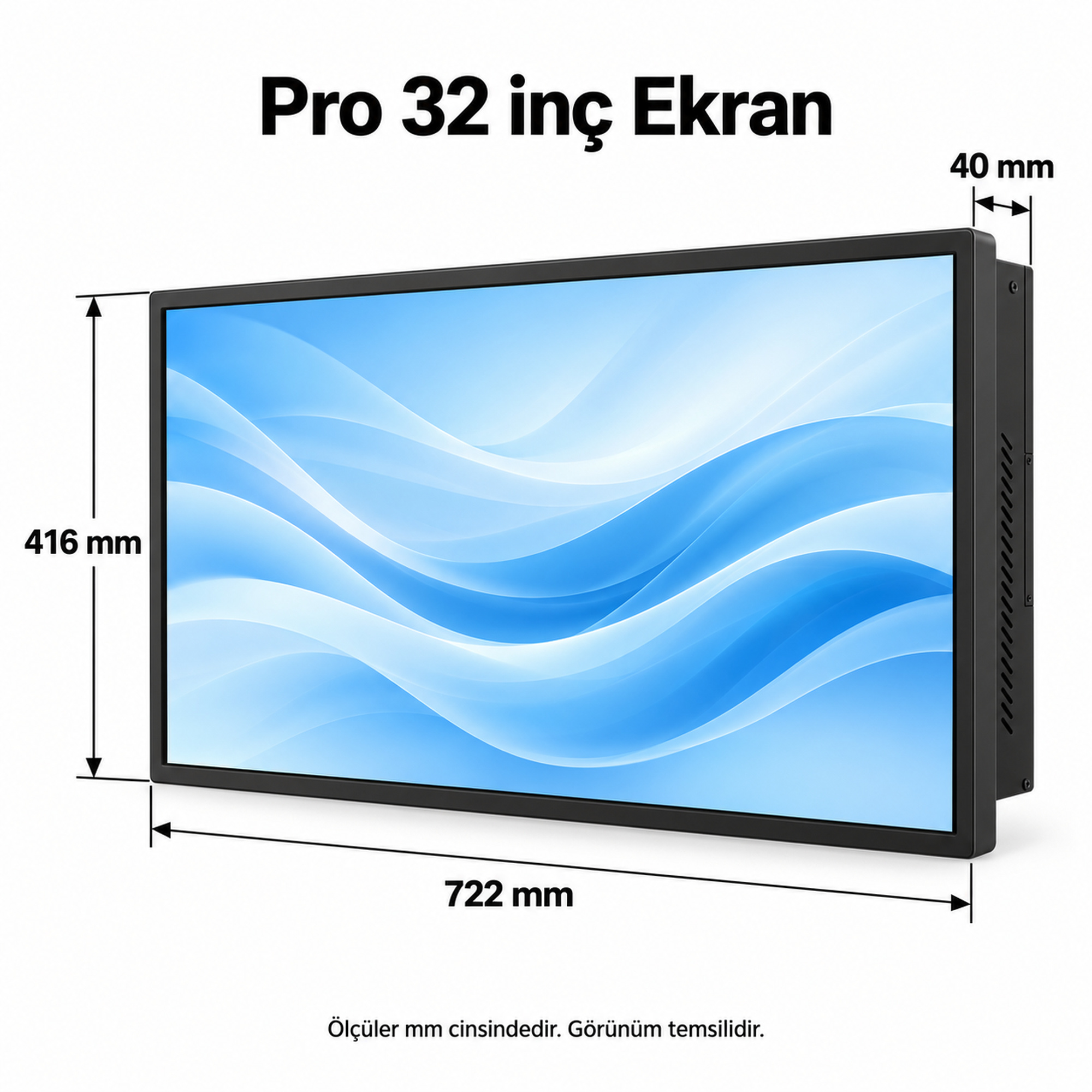

Product Size(mm) (w x h x d)
722 x 416 x 40 mm
Package Size (mm)
875 x 575 x 150 mm
Product Weight(kg)
10,0
Package Weight(kg)
12,0

Operation
7/24
Working Conditions
Operation Temp. : 0~ 50 °C Storage Temp. : - 20~60 °C
Humidity
10 ~ 80%

Glass Protector, Glass Logo, Colorful Glass and Frame

Easy Installation Guide, Warranty Document, Power Cable

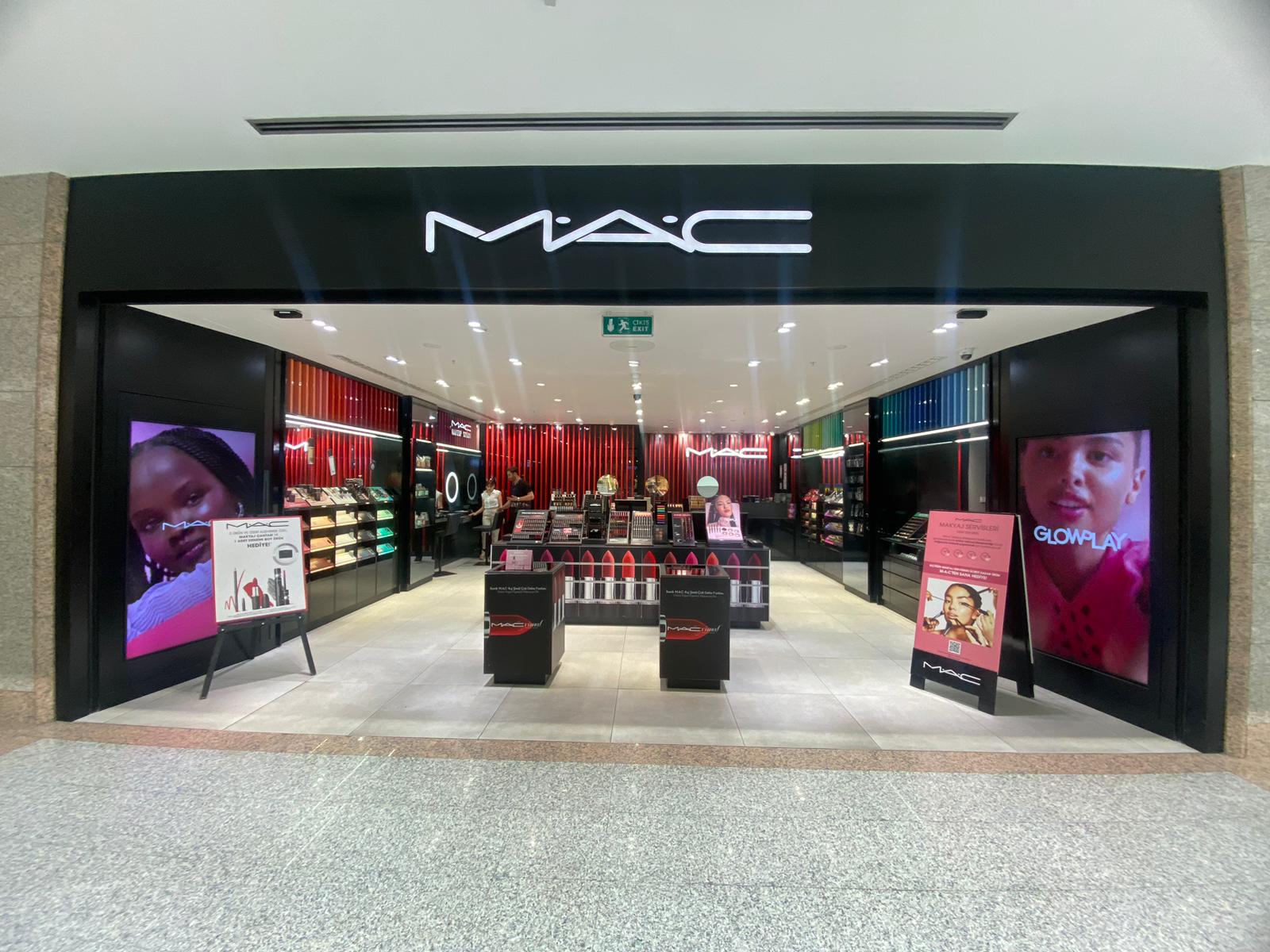

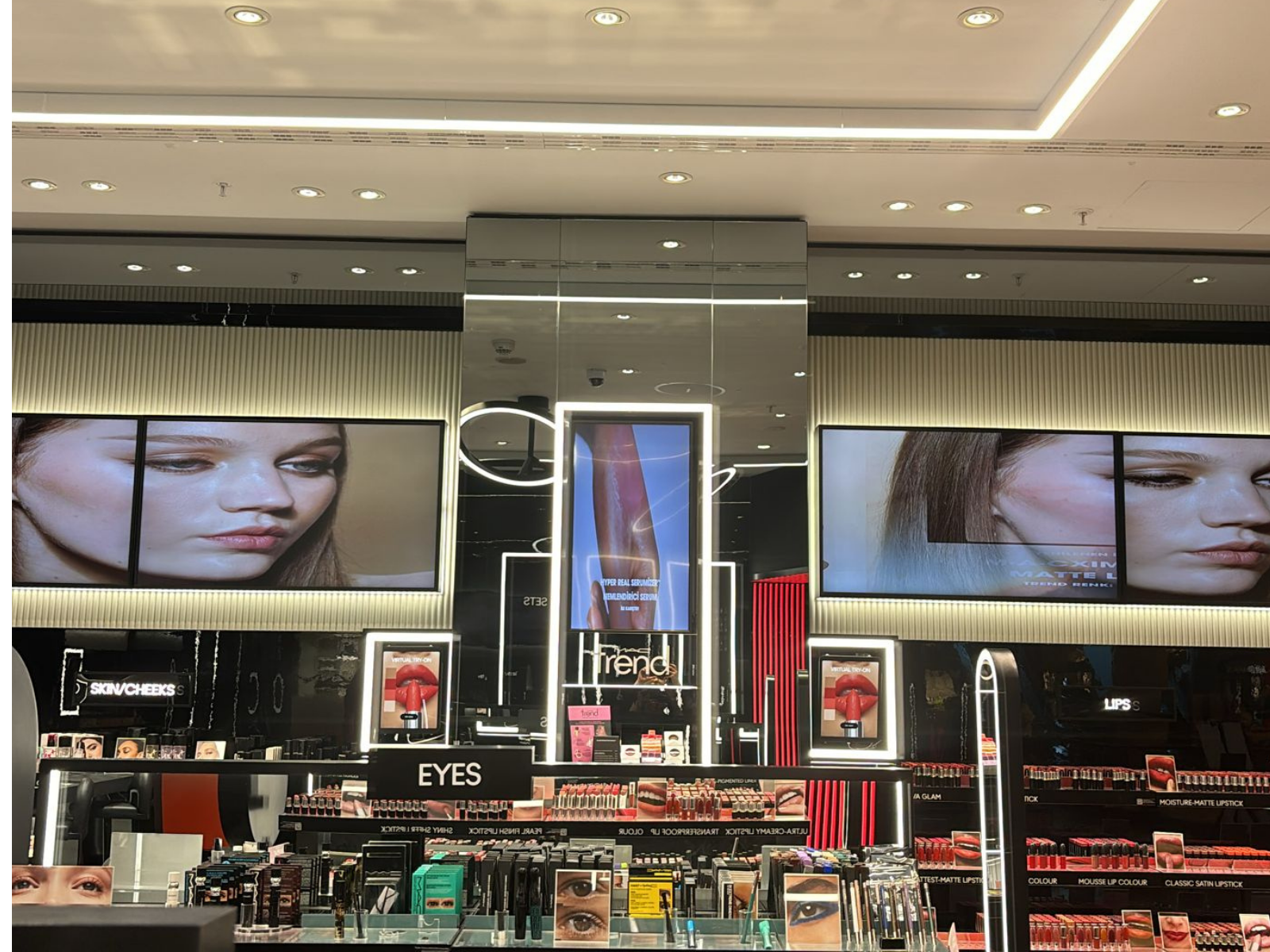

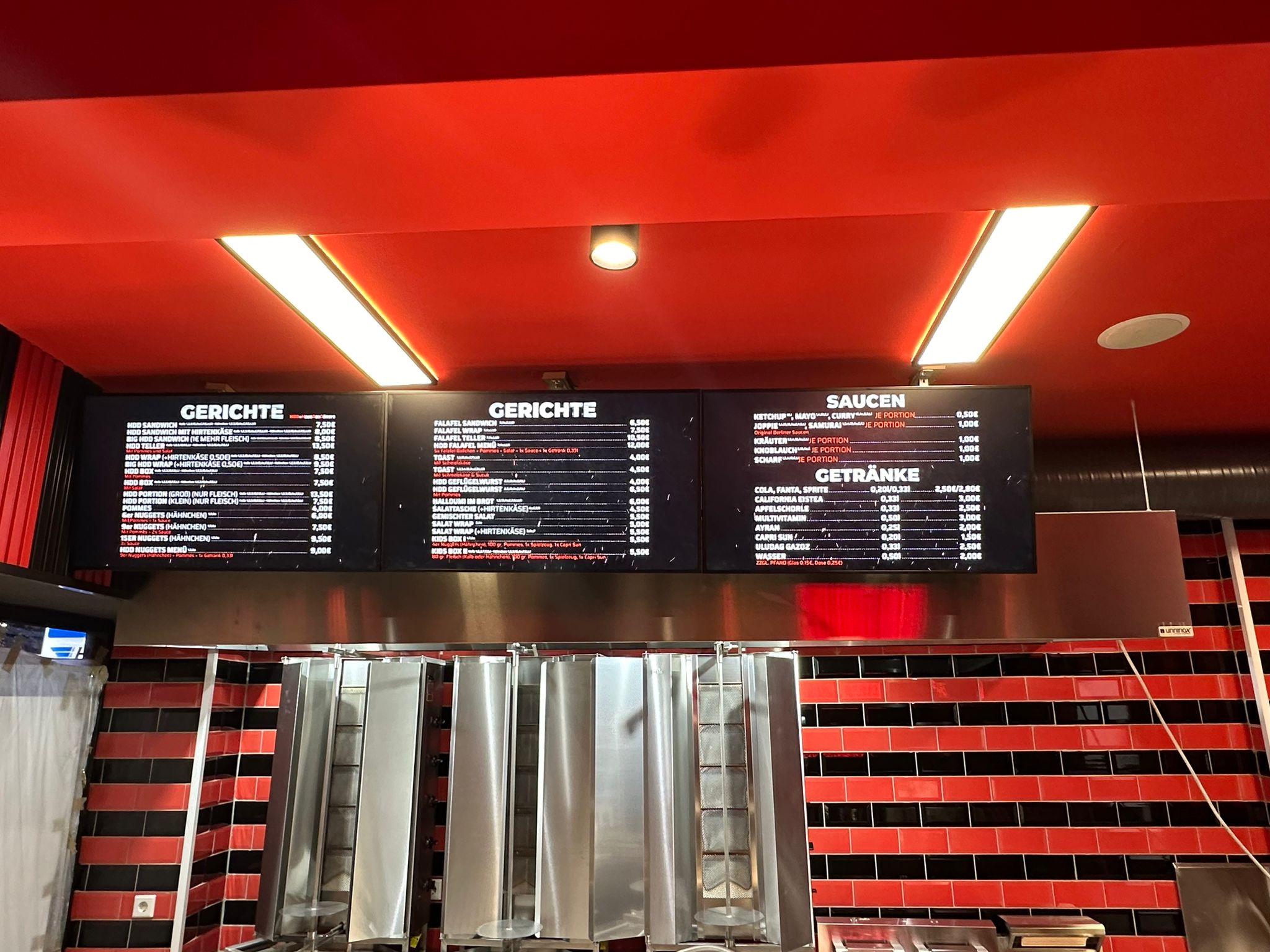

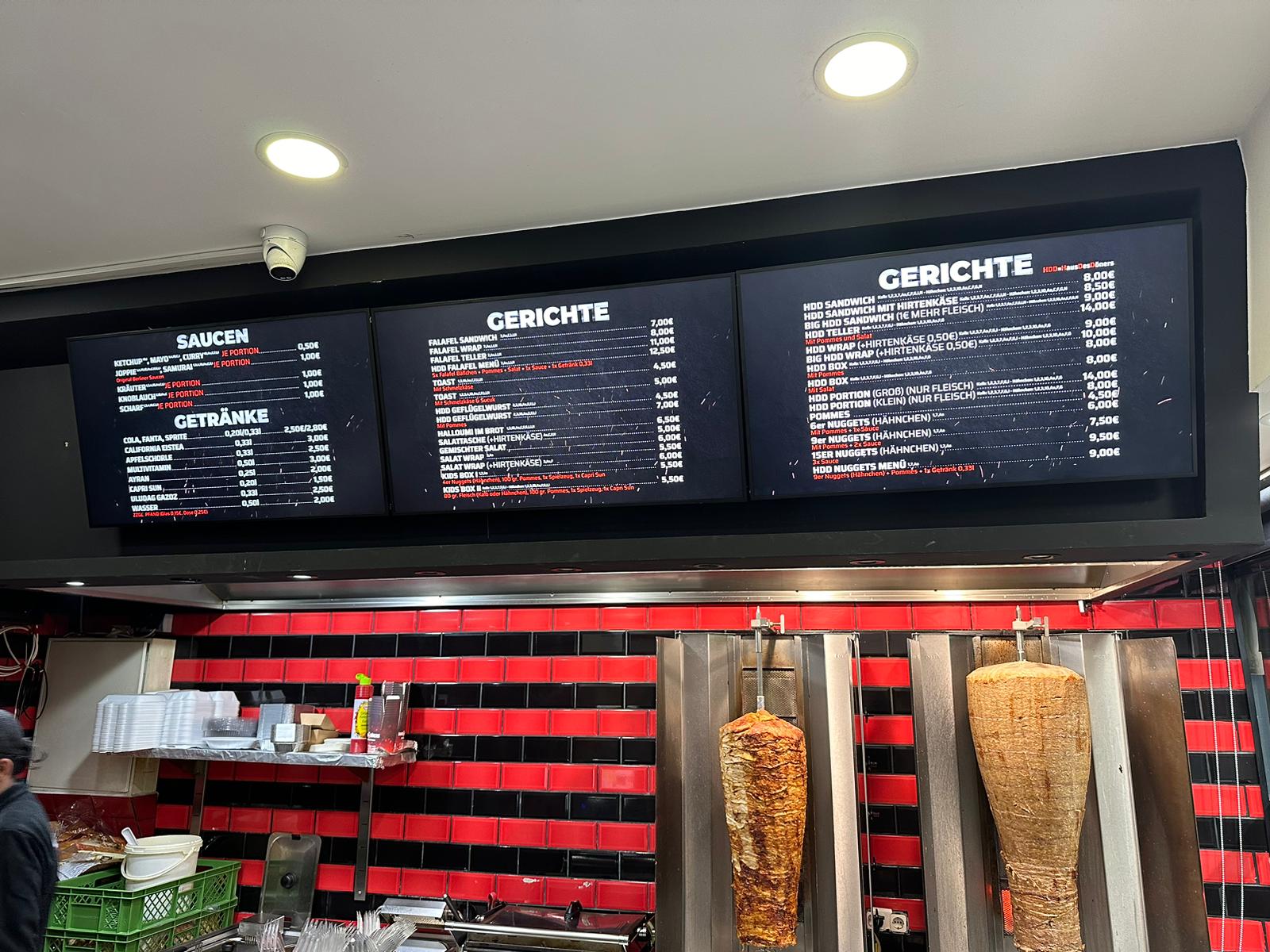

Application Images

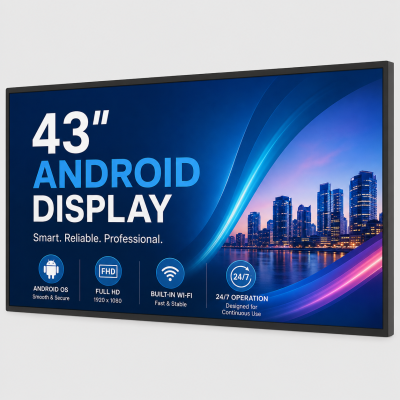

Similar Products
