11.6"Android Display

Bring your content to life, even in the smallest spaces. Unisign’s small-format Android displays, from 10.1″ to 27″, combine brilliant full-HD screens with built-in Android operating systems and seamless Wi-Fi connectivity. Designed for effortless remote content management via pre-installed CMS apps, these compact yet powerful displays are ideal for kiosks, shelf displays, point-of-sale systems, and self-service terminals. With optional touch screen functionality, robust 24/7 operation capability, and elegant industrial design, they transform every customer interaction into a digital experience—supported by Unisign’s trusted expertise.

400 cd/m2
400 cd/m2
7/24 50.000 Hour
7/24 50.000 Hour
1366 x 768
1366 x 768
Key Features
All-in-One Smart Solution
All-in-One Smart Solution
Easy Remote Management
Easy Remote Management
Designed for 24/7 Commercial Use
Designed for 24/7 Commercial Use
High-Impact Visual Performance
High-Impact Visual Performance
Flexible Installation Options
Flexible Installation Options
General Overview
All-in-One Smart Solution

With a powerful built-in Android operating system, Unisign displays eliminate the need for external media players, reducing installation complexity and costs while offering endless app integration possibilities.

All-in-One Smart Solution
Effortless Remote Management

Equipped with Wi-Fi and pre-installed CMS (Content Management System) applications, our Android displays allow users to update, schedule, and monitor content from anywhere—keeping signage networks dynamic and responsive.

Effortless Remote Management
Designed for 24/7 Commercial Use

Engineered for professional environments, these displays feature robust thermal management, industrial-grade components, and reinforced housings, ensuring reliable operation around the clock.

Designed for 24/7 Commercial Use
Yüksek Etki Gücüne Sahip Görsel Performans
Flexible Deployment Options

Available with optional touch screen capabilities, diverse mounting configurations, and customizable housing, Unisign Android displays fit perfectly into kiosks, self-service systems, wayfinding solutions, and interactive points of sale.

Flexible Deployment Options
Technical Specifications

Panel Size
11.6
Resolution
1366x768
Brightness (cd/m² Typ.)
400 cd/m²
Contrast Ratio
600:1 (Typ.) (TM)
Viewing Angle (H x V)
85/85/85/85
Response Time (ms)
25 (Typ, Tr+Td)
Active Display Area
256.125(W)×144(H) mm

CPU
Rockchip, Quad-core, up to 2.0GHz
RAM
2GB / 4GB (optional)
Internal memory
16GB / 32GB (optional)
Operation system
Android

WiFi
Supported
Ethernet
1 × 10M/100M Adaptive Ethernet
Bluetooth
BT 4.1

Video format
MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 4K
jpeg, bmp etc.
Language
Multi-language
Other
Supports kiosk mode

Card slot
SD card
HDMI
HDMI Out
USB
2*USB 3.0
Earphone
3.5mm earphone + Microphone

Power Requirement
AC 100 - 240 V~ (+/- 10 %) 50/60 Hz
Power Consumption (Avg.)
15W
Standby Mode
<0,5W

Vesa Mount
75 x 75

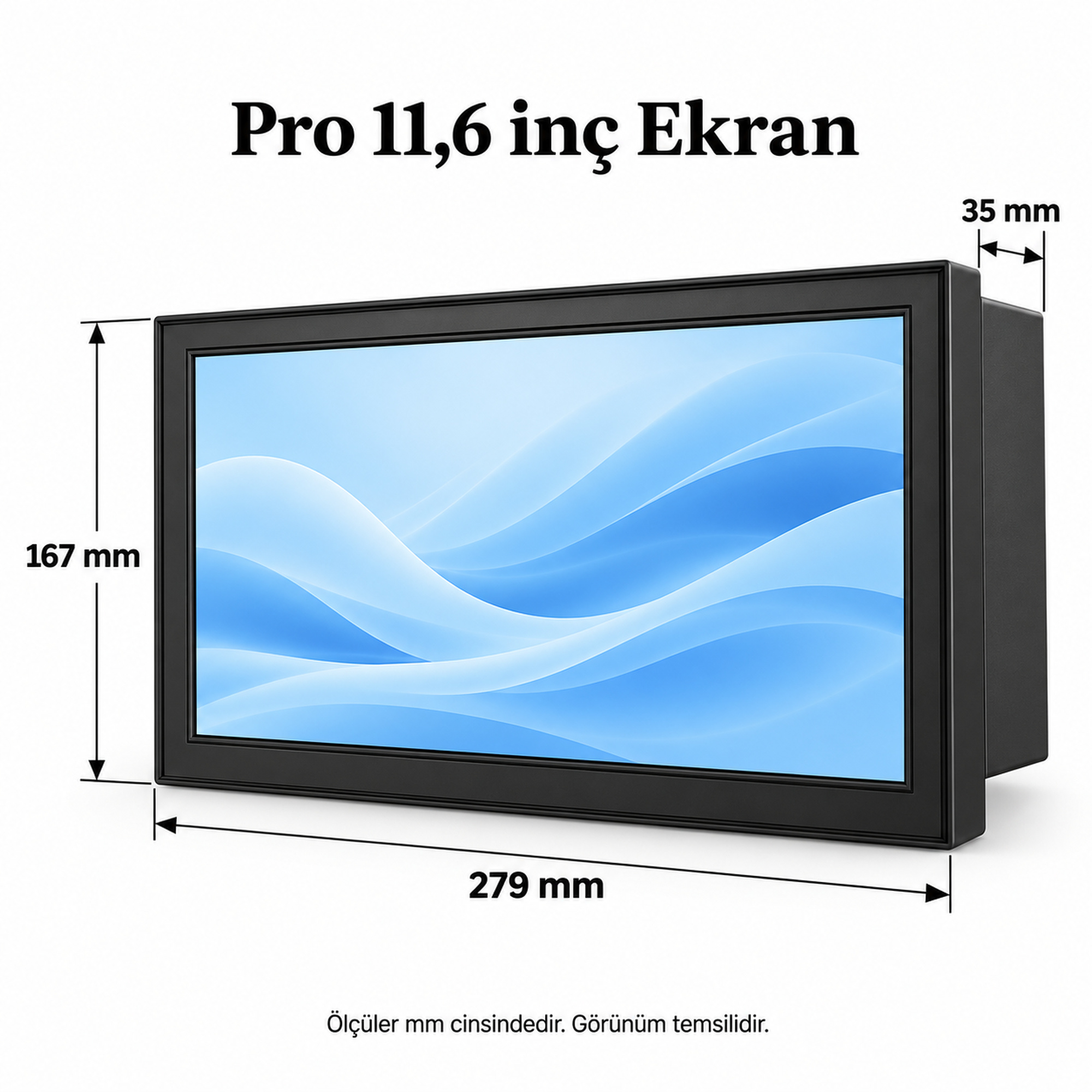

Product Size(mm) (w x h x d)
279 x 167 x 35 mm
Package Size (mm)
425 x 325 x 125 mm
Product Weight(kg)
2,0
Package Weight(kg)
3,0

Operation
7/24
Working Conditions
Operation Temp. : 0~ 50 °C Storage Temp. : - 20~60 °C
Humidity
10 ~ 80%

Glass Protector, Glass Logo, Colorful Glass and Frame

Easy Installation Guide, Warranty Document, Power Cable
